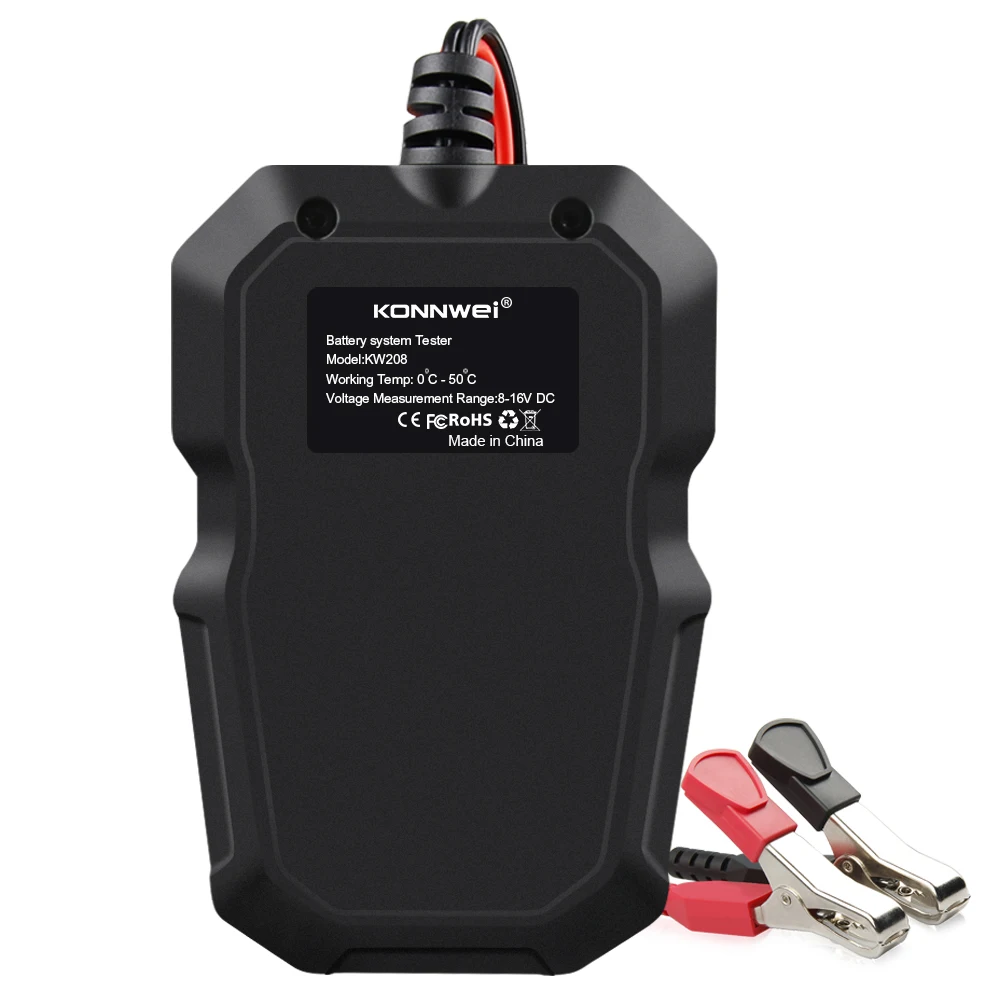

KONNWEI KW208 Car Battery Tester 12V 100 to 2000CCA Cranking Charging Circut Tester Battery Analyzer 12 Volts Battery Tools тестер для аккумулятора
Software Version:1.1.3
Hardware Version:1.2.0
The maximum current is 200A, and the maximum battery capacity is 2000CCA
KONNWEI KW208 12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status. It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.
It provides techs or DTYer with a quick, simple and cost-effective solution to know the battery’s charging status better , check the battery’s health and detect faults.
Top reasons to Choose KW208 Car Battery Tester
1.[Multi-Functions]：KONNWEI KW208 Battery Tester includes Battery test, Cranking test, Charging test functions. Mainly targeted to analyze the battery healthy status. It directly detects whether the battery is good or bad, and present suggested solutions.
2.[Convenience] : No internal batteries required and gets the power directly from the 12V battery. And testing can be done by connecting electrodes.
3.[Professional]：Test standards include most battery standards in the world, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE
4.[Efficiency & Safety]：Using advanced conductive technology, it can directly display the high accuracy results of vehicle info. Deigned with polarity reverse connection protection. It will not damage the device or affect the car or battery.
5.[Multi-language Support]：8 Languages are
available.Available in English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese.

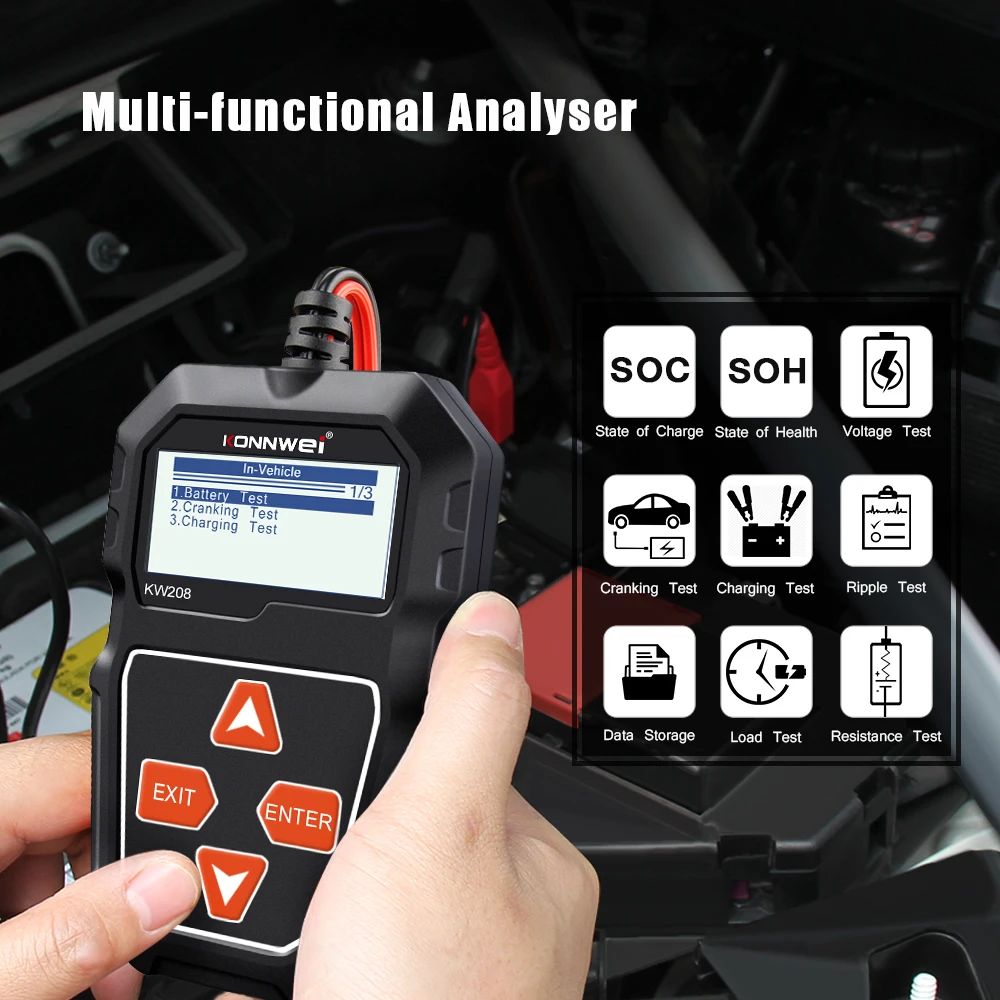

KONNWEI KW208 functions:
1..Test Result Good, Recharge or Replace
2.Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (mΩ) and Life in percentage (%)
3.Cranking system and Charging system
4.Record and re-play battery data.
5.Battery test, cranking test, charging test and other additional functions.
6.The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,DIN and IEC are supported
KONNWEI KW208 features:
1.【DATA READINGS】The KONNWEI KW208 12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.
2.【ACCURATE MEASUREMENTS】This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.

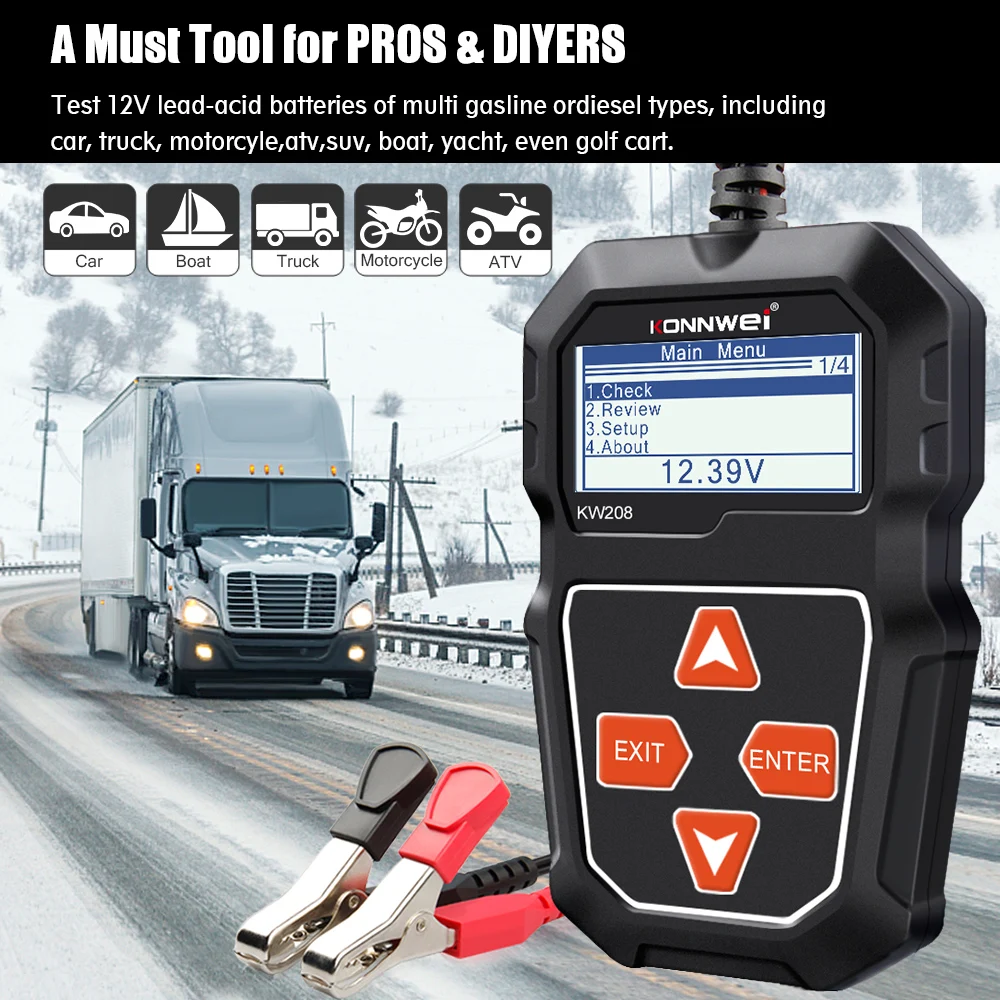

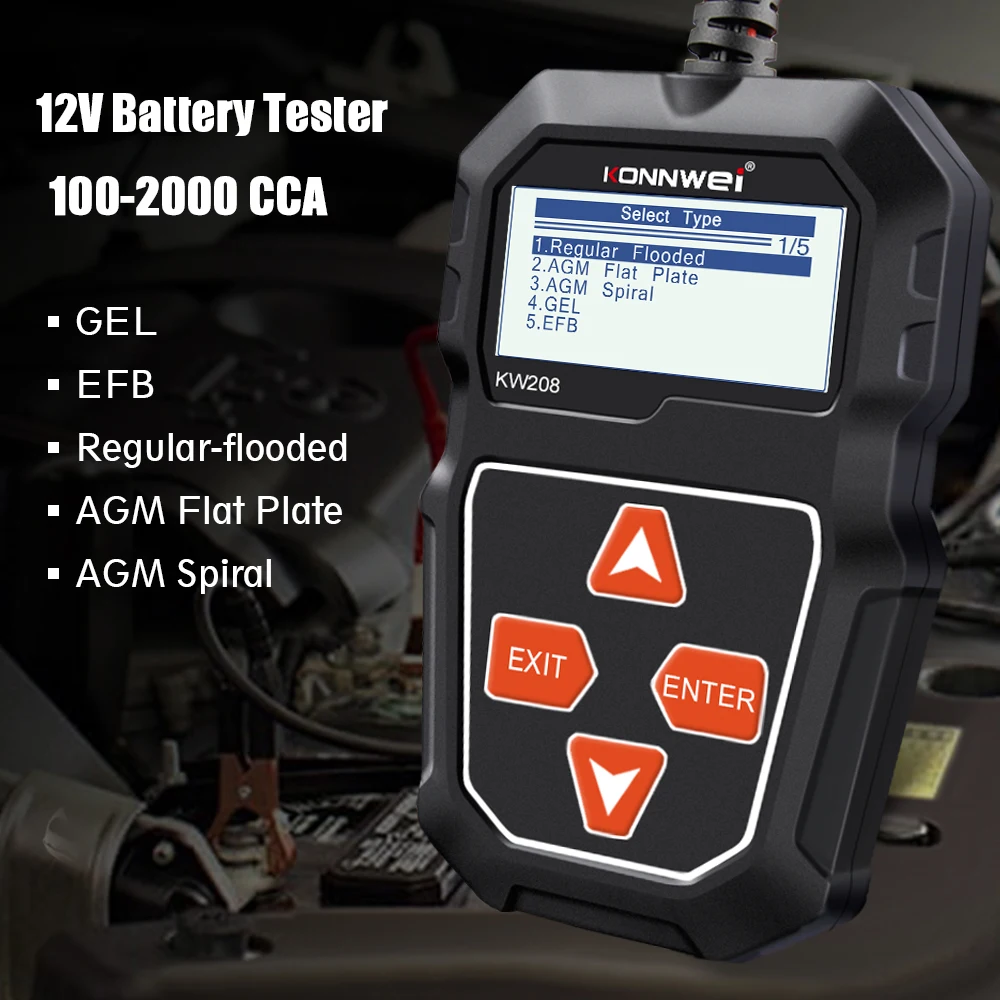

3.【WIDELY COMPATIBLE】Beginner or expert, this car battery diagnostic tester can be used with a wide selection of 12V 100-2000 CCA regular flooded batteries, AGM flat plate, AGM spiral, as well as GEL batteries.

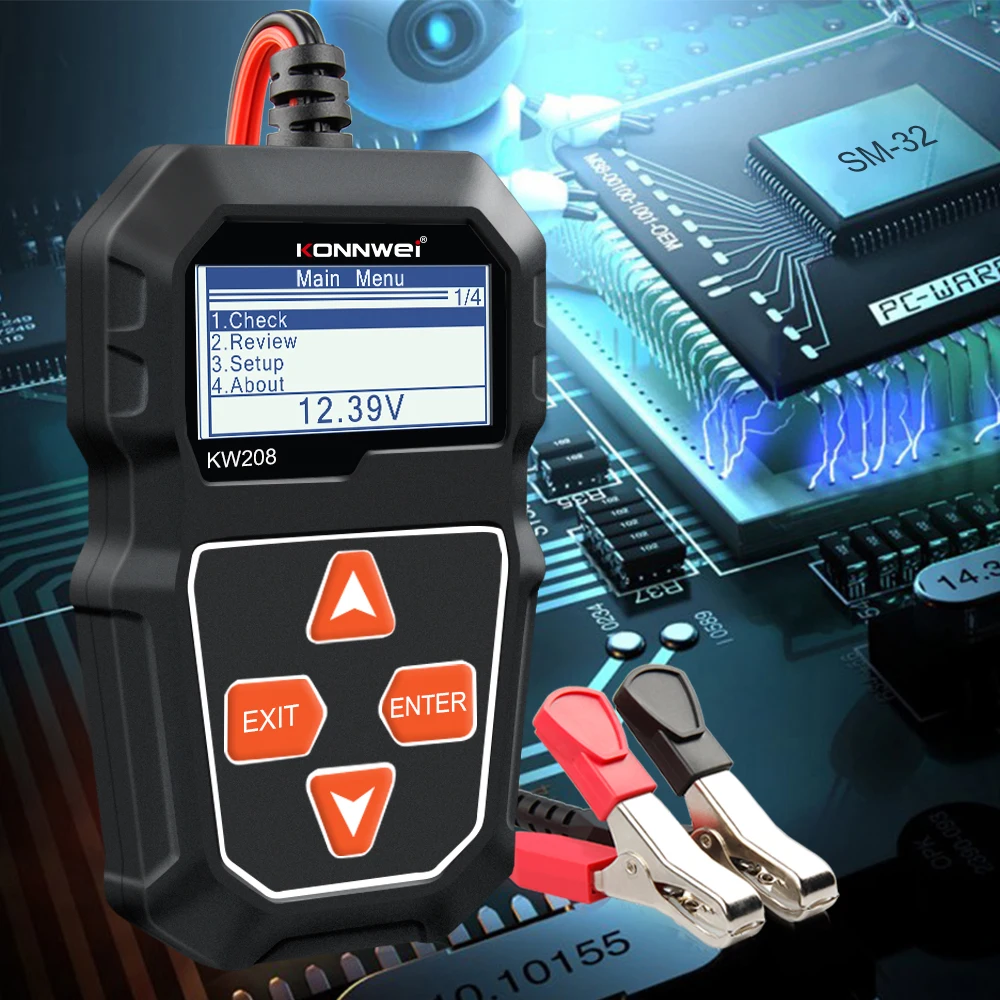

4.【EXTRA FEATURES】The KW208 car battery tester displays test results in text , displaying the real-time battery voltage. With an intelligent 2.4” backlit and STM32 main chip, reading access is practical and rapid!
How to use it?

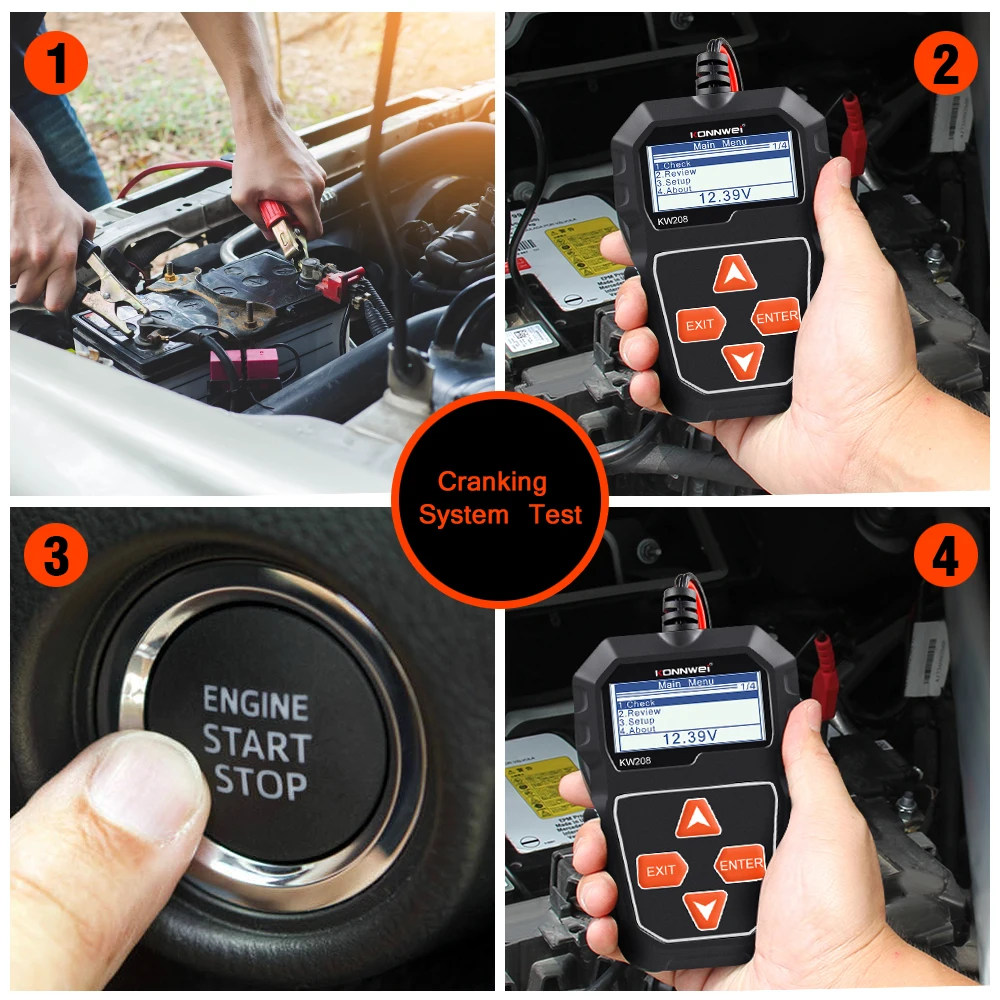

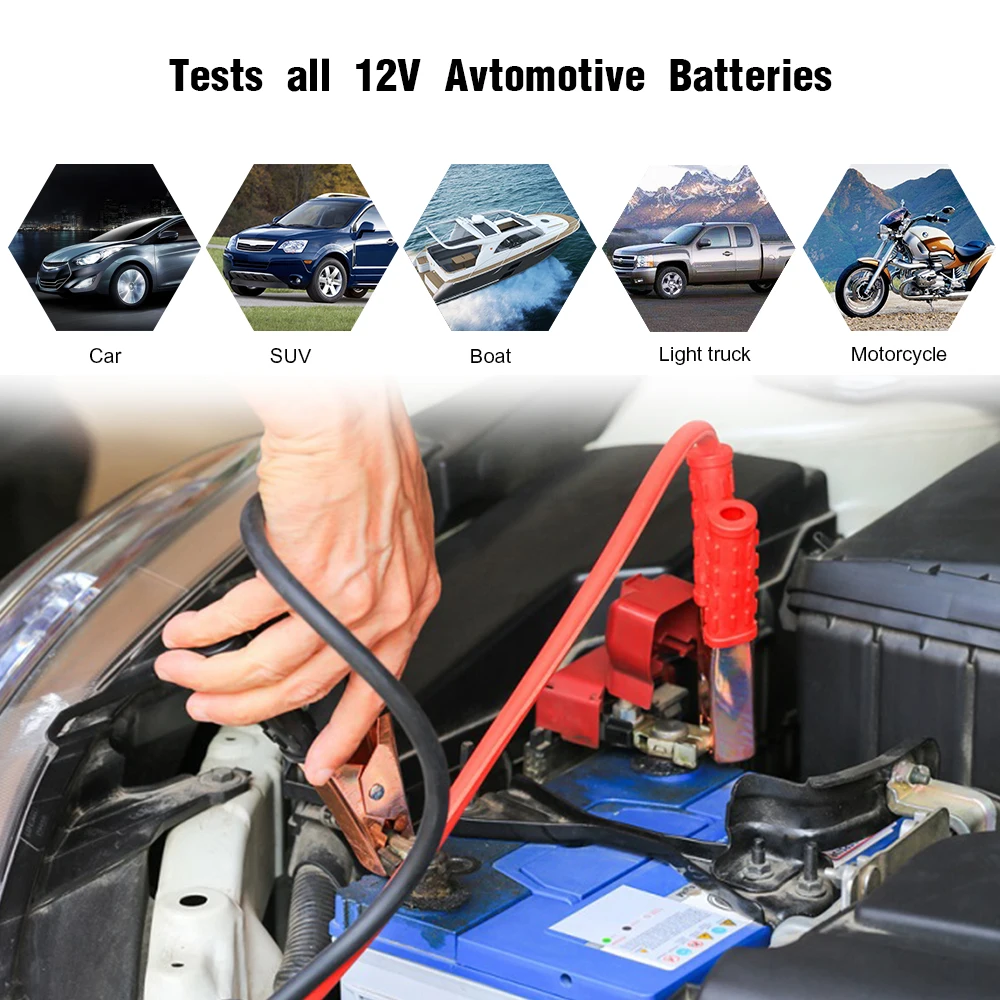

Step 1. Connect the 12V battery, red clips to positive pole and black clips to negative pole.
Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.

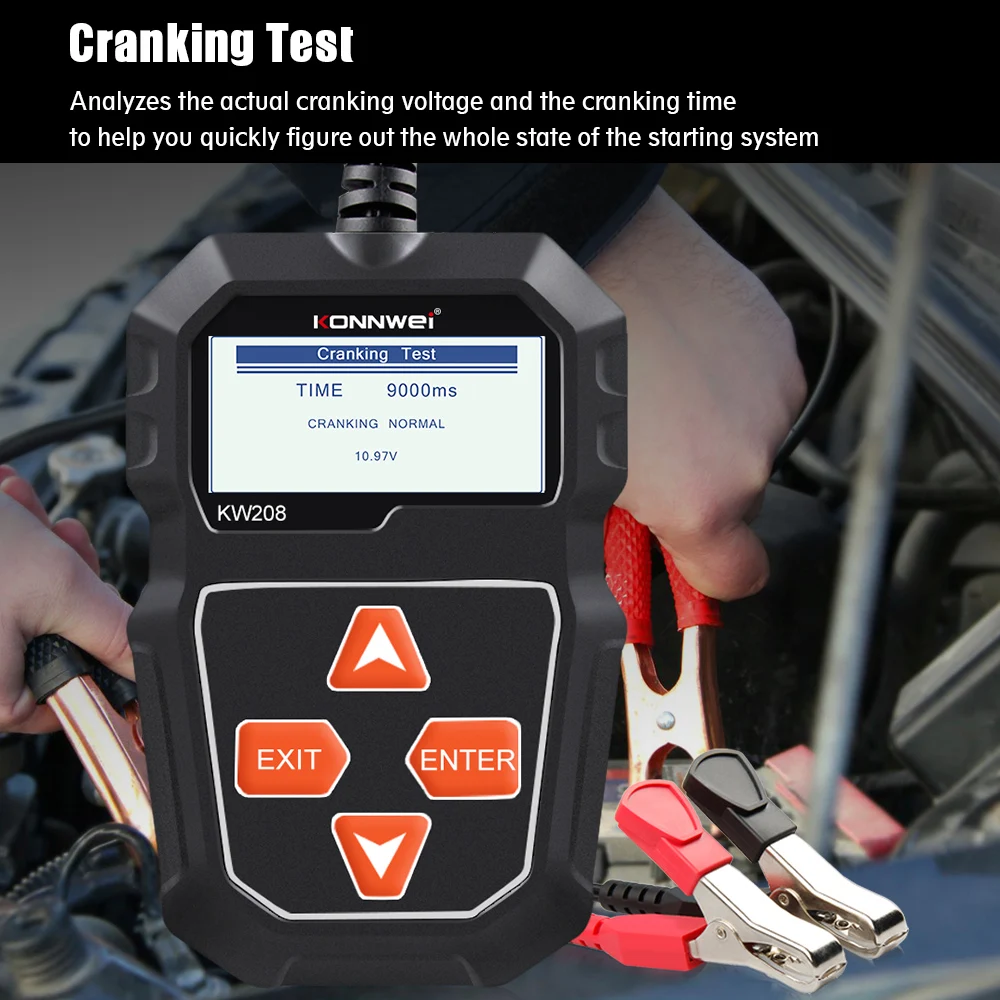

Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.

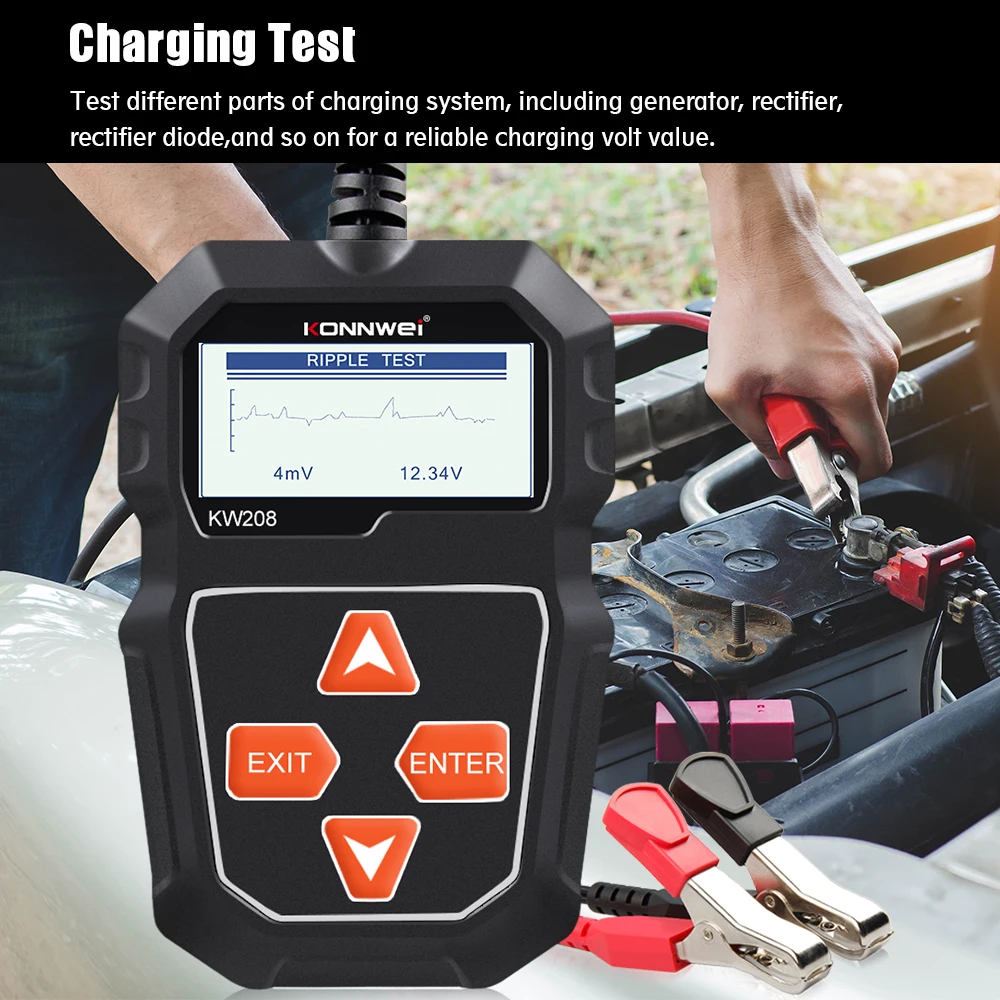

Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

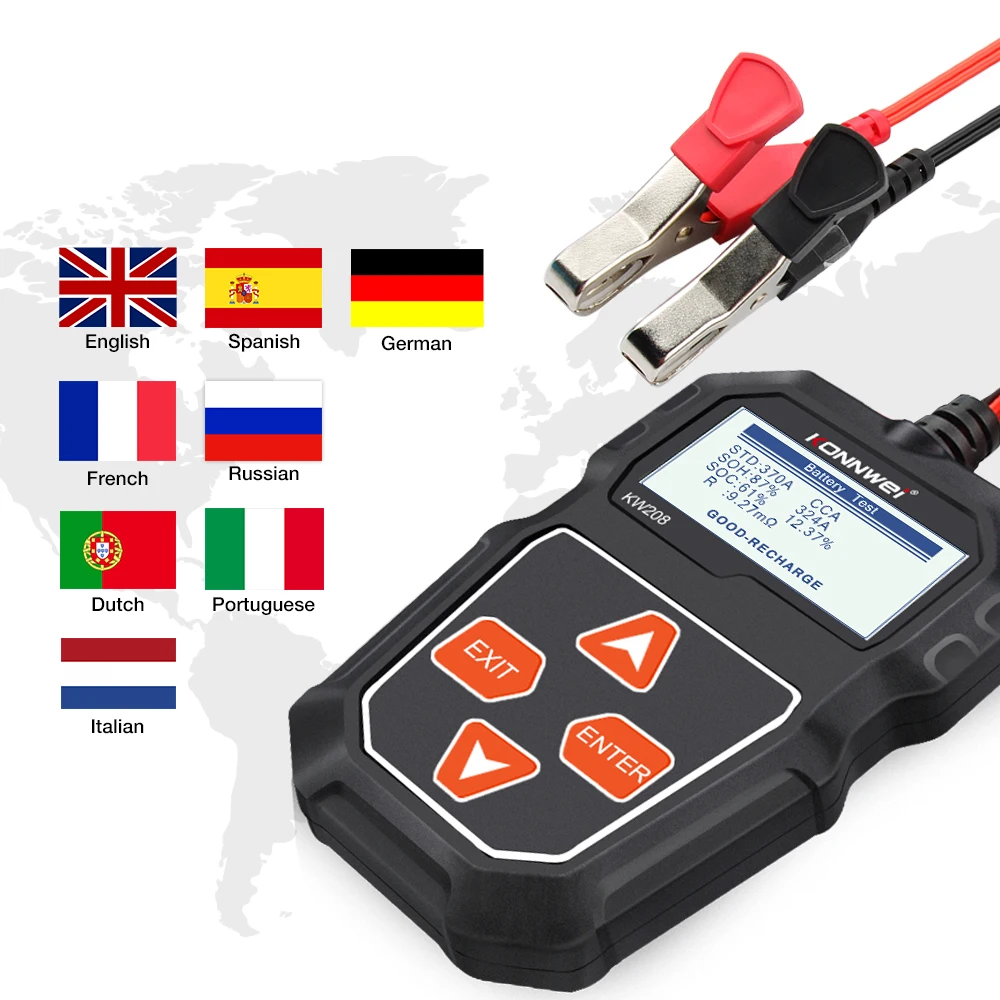

KONNWEI KW208 support 8 languages:
English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese

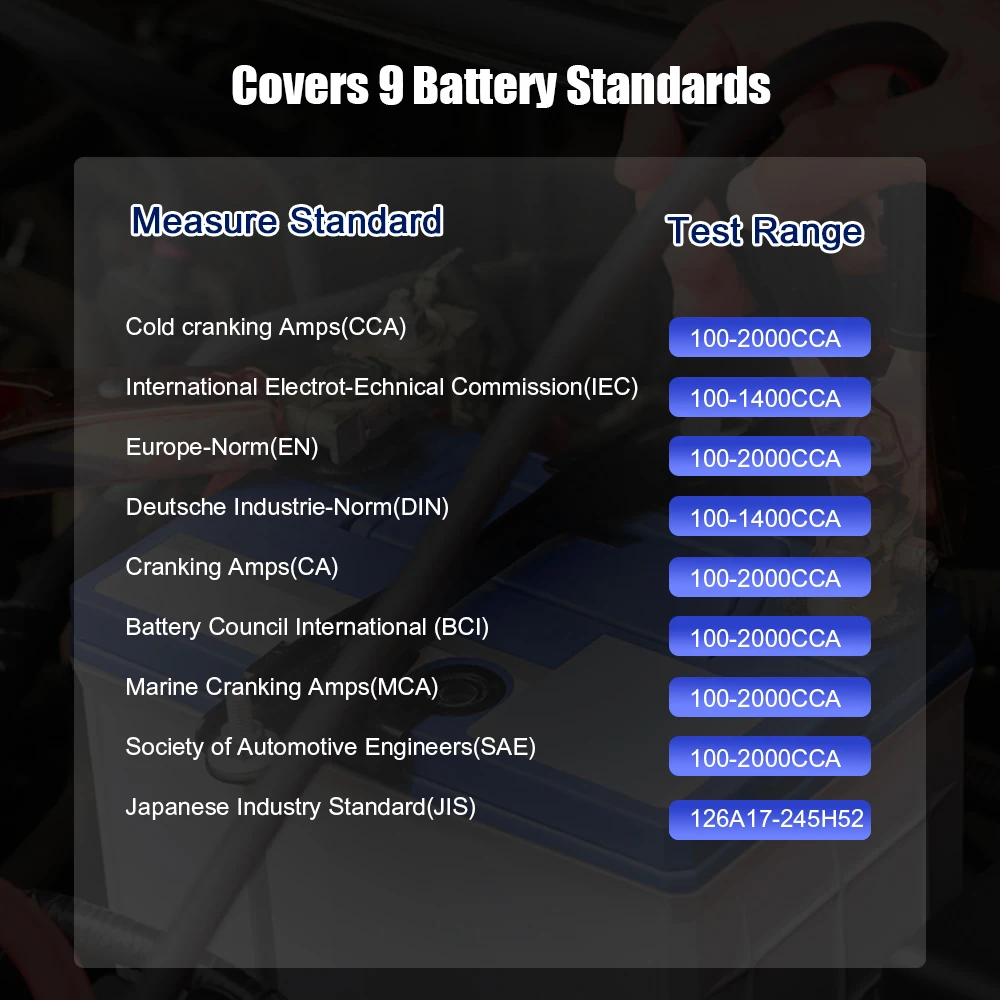

KONNWEI KW208 support measure standards:
Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
1.CCA:100-2000
2.BCI:100-2000
3.CA:100-2000
4.MCA:100-2000
5.JIS:26A17-24SH52
6.DIN:100-1400
7.IEC:100-1400
8.EN:100-2000
9SAE:100-2000

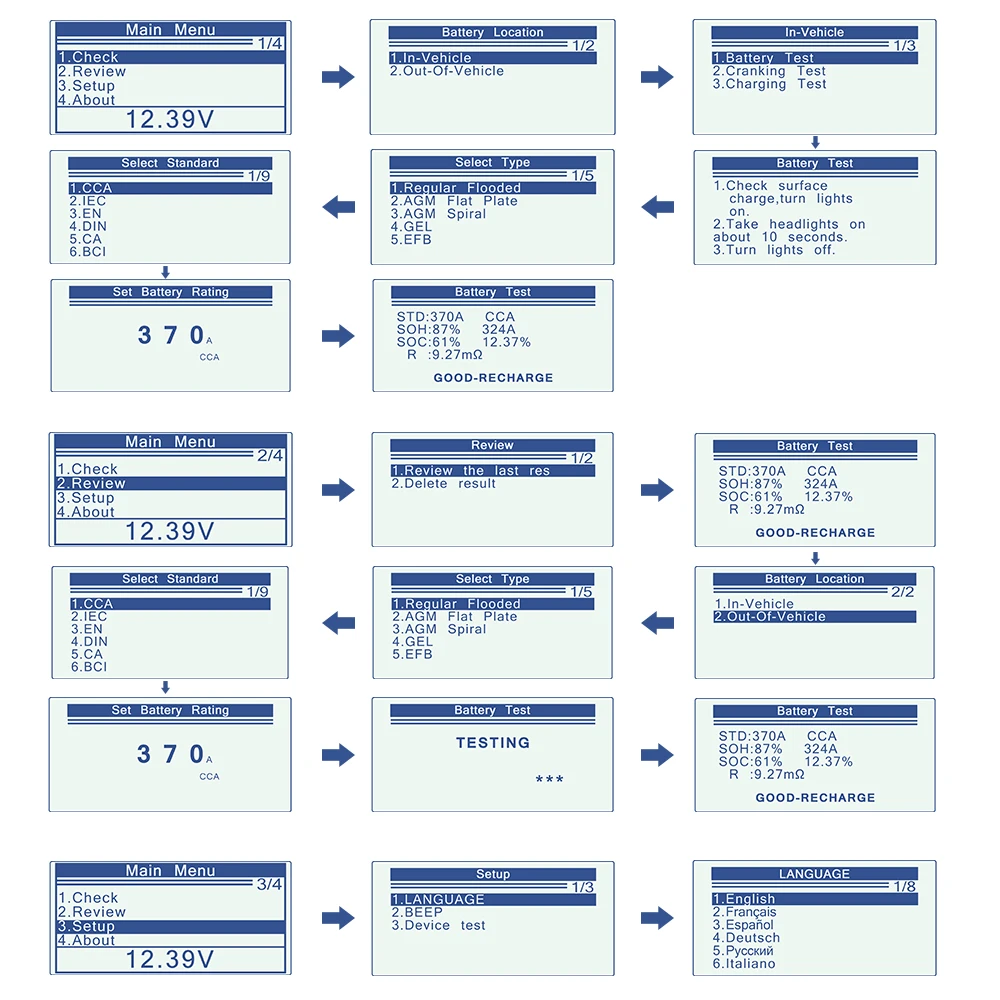

Software display:

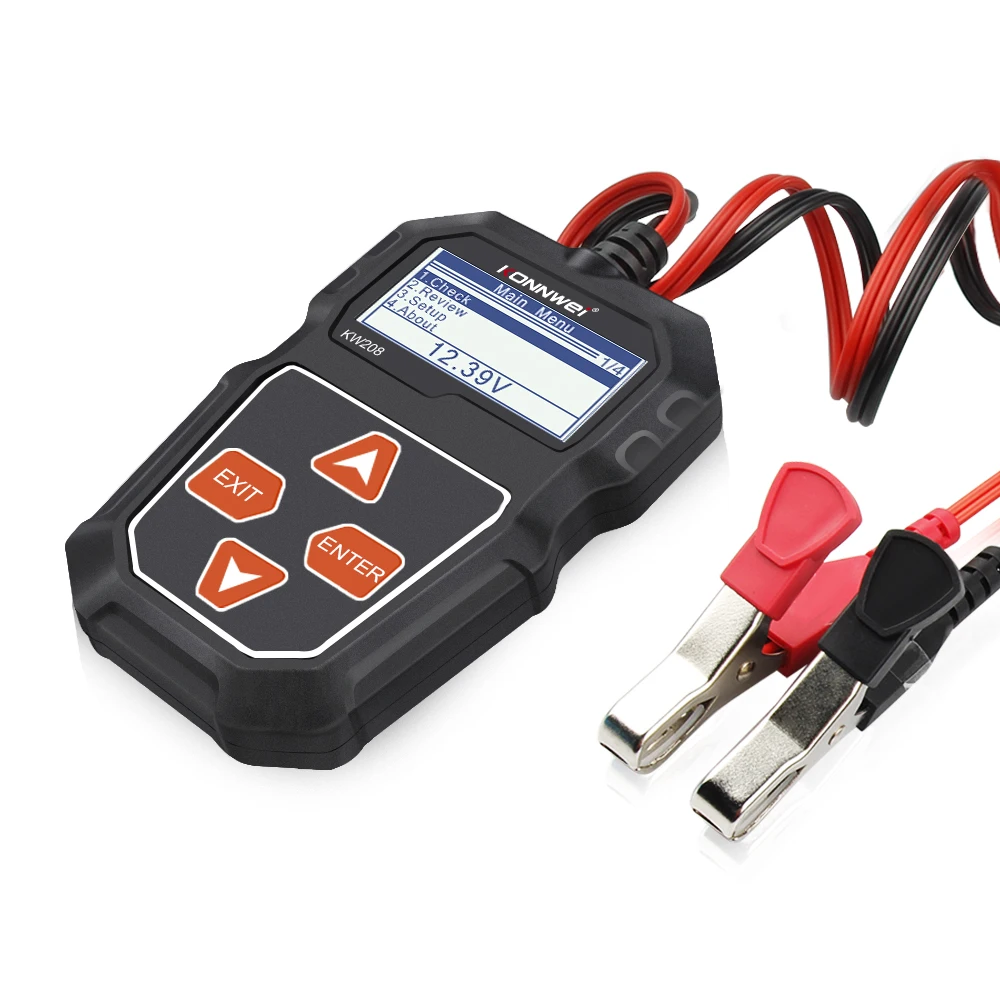

Item pictures:
Package List
KW208 Battery Tester*1
Instruction Manual*1
Safe packing box *1
1.Can this test for a battery drain as well as current battery output?
The meter performs the following primary tests: 1.System voltage: 12 Volts; 2.Test Results: Good, Recharge or Replace; 3.Capacity – Cold Cranking Amps (CCA); 4.Internal resistance value (mΩ); 5.Life in percentage (%); 6.Cranking system testing; 7.Charging system testing; 8.Voltage test in waveform; and 9.Record and re-play battery data. I’ve used it in several vehicles and on batteries to determine the status, and so far it has performed very well for me. I think the first seven points above will meet your need.
2.I have 8 different batteries that are all 12V 35aH. how will this allow me to rank the batteries from best to worst for health/age?
You can use KW208 to test it, it will show you each battery’s health status in percentage.
3.Need much more info how soh, soc, and cca are used to determine battery health. What are the cut offs? Example is soh 55% bad?
As a rule of thumb, <80% SOH it’s time to replace the battery. For SOC, generally you want to see at least 50%, preferably more than 80%. Both of those limits are arbitrary though. There’s no magic number – – – it depends on the application.CCA is the amps a battery can support for 30 seconds @ 0* F. It should match the battery rating.
4.How long are the cables?
Each positive and negative cable is 28 inches long including the clamp end.
5.Does it do a load test?
Yes, KW208 car battery tester can do a load test.
