1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
Hot Selling Cheap Paper Egg Carton Product Line Egg Tray Pulp Molding Machine Small Business
| Model | YG-1*3 | YG-1*4 | YG-3*4 | YG-4*4 | YG-4*8 | YG-5*8 | YG-6*8 |
| Capacity (pcs/h) | 1000 | 1500 | 2500 | 3500 | 4500 | 5500 | 7000 |
| Forming Mould Quantity | 3 | 4 | 12 | 16 | 32 | 40 | 48 |
| Total Power (kw) | 40 | 40 | 50 | 60 | 130 | 140 | 186 |
| Electricity Consumption (kw/h) | 28 | 29 | 35 | 42 | 91 | 98 | 130 |
| Worker | 3-5 | 4-6 | 4-6 | 4-6 | 4-6 | 5-7 | 6-8 |

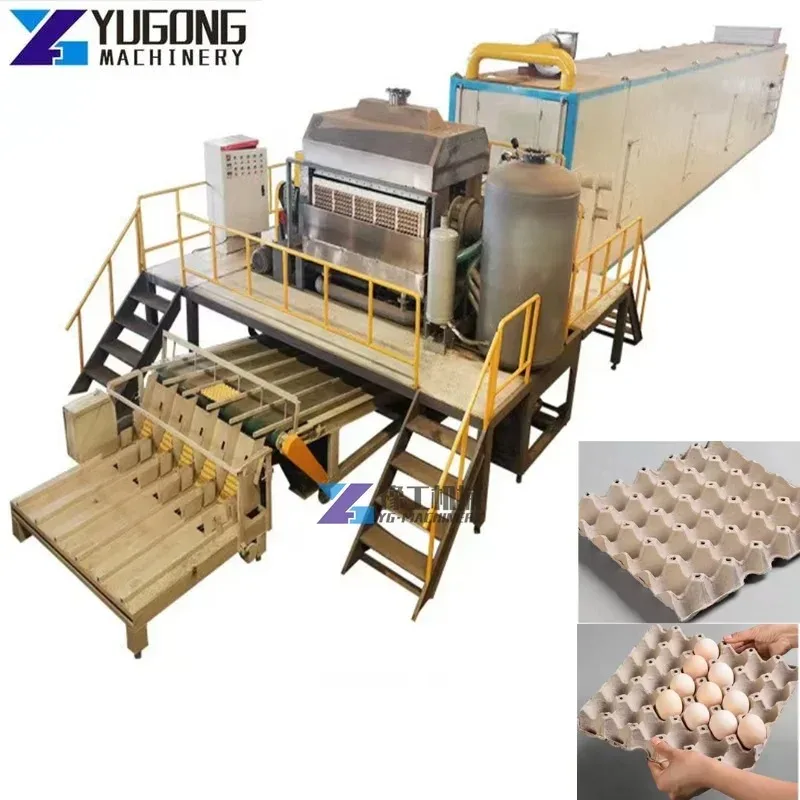

The automatic egg tray production line is composed of pulping system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system.Using waste newspapers, waste carton paper, office paper, scraps and other waste paper as raw materials, through hydraulic disintegration, filtration, water injection and other processes to prepare a certain concentration of slurry, through the molding system on the special metal mold through vacuum adsorption A wet blank is formed, which is then dried on a drying line, and then stacked after being hot-pressed on-line.
 |
Pulp system
Feed the waste paper and water into the pulping machine, and after about 20 minutes of high-concentration stirring, the pulp is
automatically transported to the pulp storage tank for storage and stirring. Then the slurry is transported to the slurry tank by the slurry supply pump and stirred to the required consistency, and then transported to the forming machine. |
|

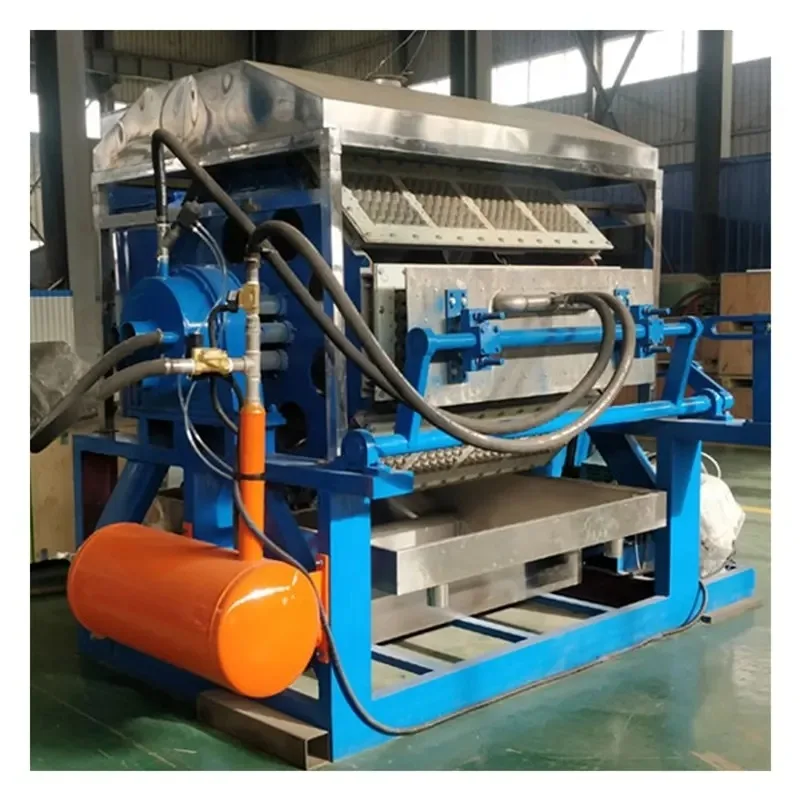

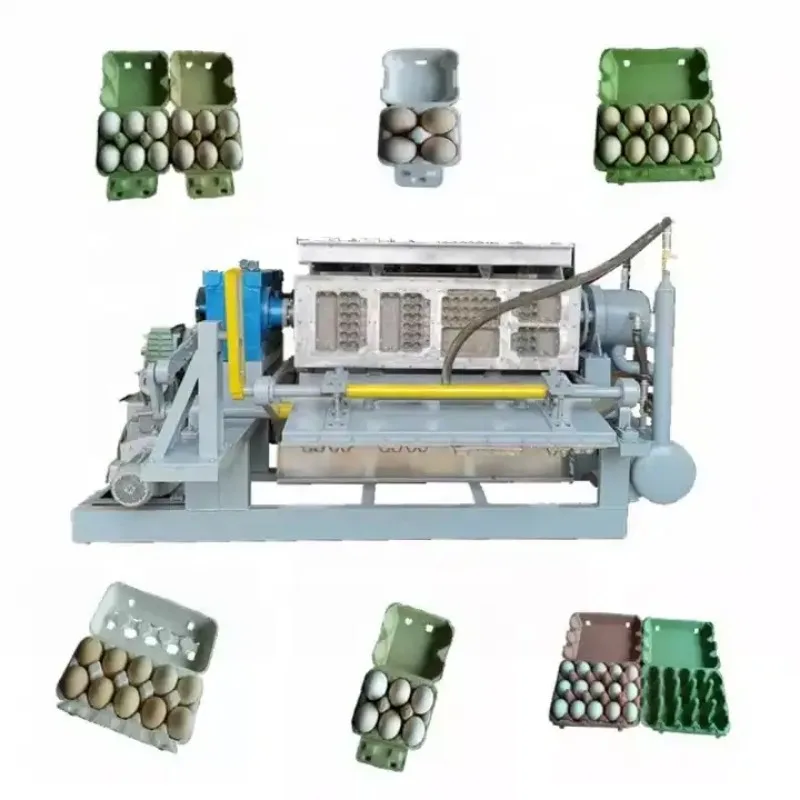

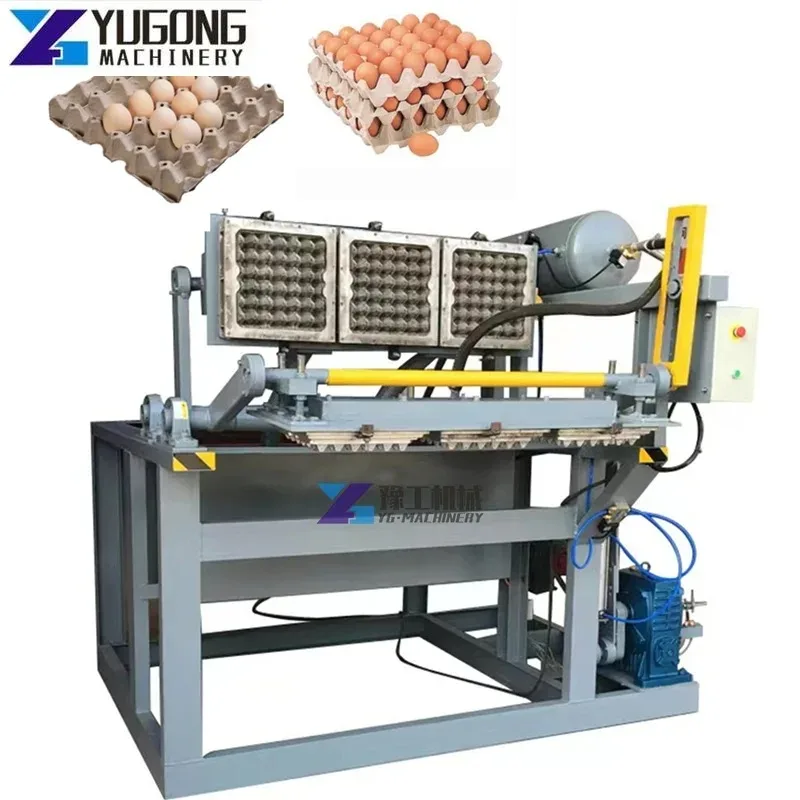

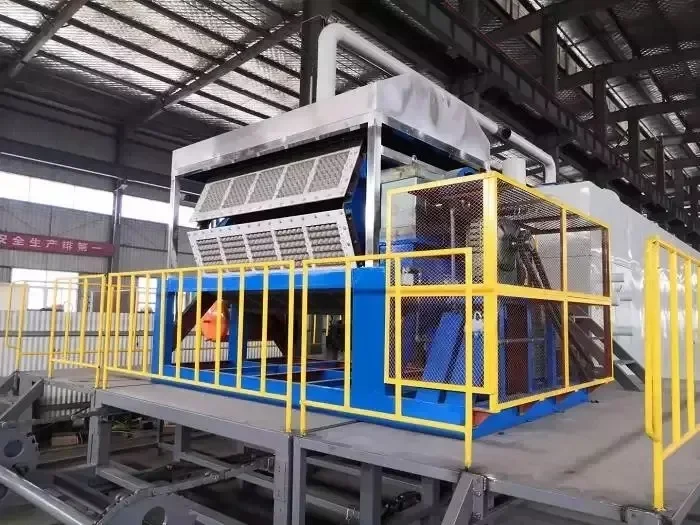

Molding system
1. The molding machine adsorbs the pulp pumped into the hopper of the molding machine to the molding machine mold, and adsorbs the pulp to the molding machine mold through the suction of the vacuum system, and sucks the excess water into the gas-water separation tank. The water pump is pumped into the pool for storage.
2. After the mould of the forming machine absorbs the pulp and forms it, the manipulator of the forming machine takes out the finished product and sends it to the drying conveyor belt.
|
 |
 |
Metal drying system
Multi-layer drying system, the internal temperature can reach 120 degrees.
Fast drying paper tray, fast delivery.
High temperature resistant material, long service life
|
Packaging
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
